Razortek Semi-automatic Feeding Fiber Laser Cutter For Pipe and Tube RZ60F

Source:razorteklaser  Time:2026-03-24

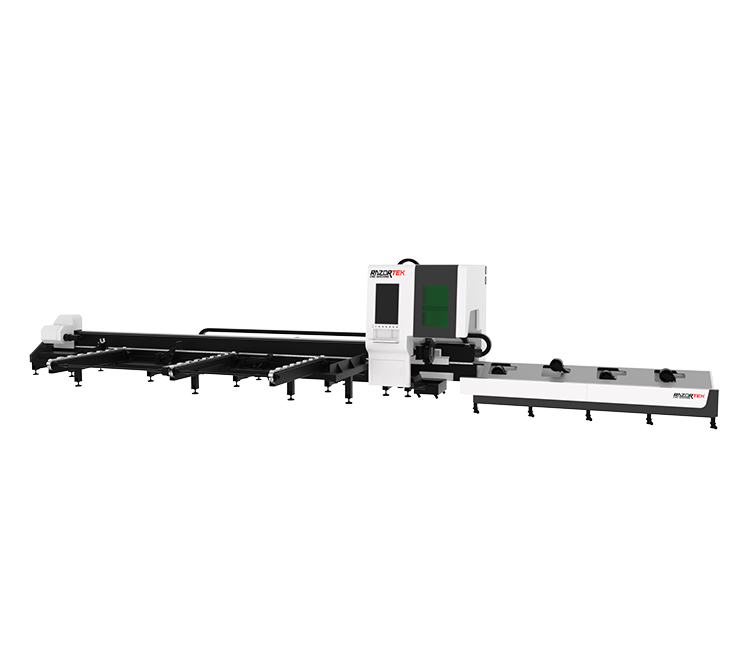

The Razortek 120mm chuck pipe semi-automatic feeding fiber laser cutting machine is a laser processing device specifically designed for cutting metal pipes. Its core component, the chuck, can clamp pipes with diameters ranging from

approximately 20 to 120mm, making it suitable for various industries such as furniture manufacturing, steel structures, and mechanical processing.

The RZ60F 120mm diameter chuck fiber laser pipe cutting machine is widely used in fields that require medium diameter machining:

1. Furniture manufacturing industry: replacing traditional sawing to improve accuracy and efficiency.

2. Steel structure industry: Processing pipes for bridges and construction to shorten delivery cycles.

3. Mechanical processing: supports groove cutting and complex graphic processing of various pipes.

Product Configuration:

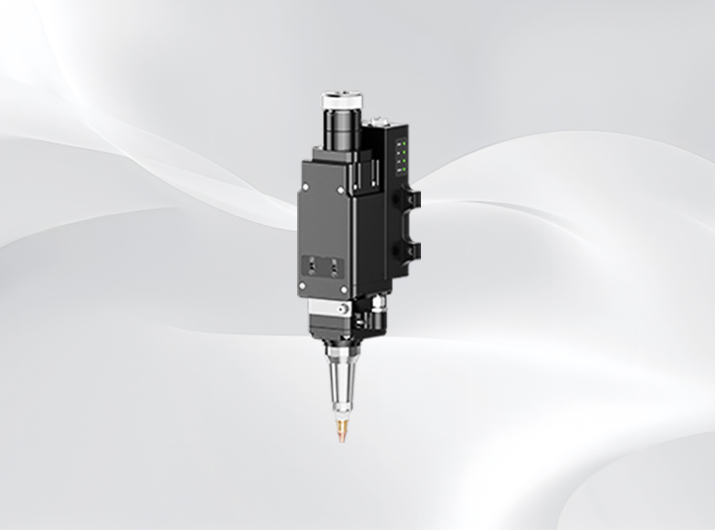

1. BLT3/BLT4/BLT5 Bochu(CYPCUT) Laser Heads

BLT3/BLT4/BLT5 auto focus laser head, 3D sensing head,achieve cutting of various tube types.

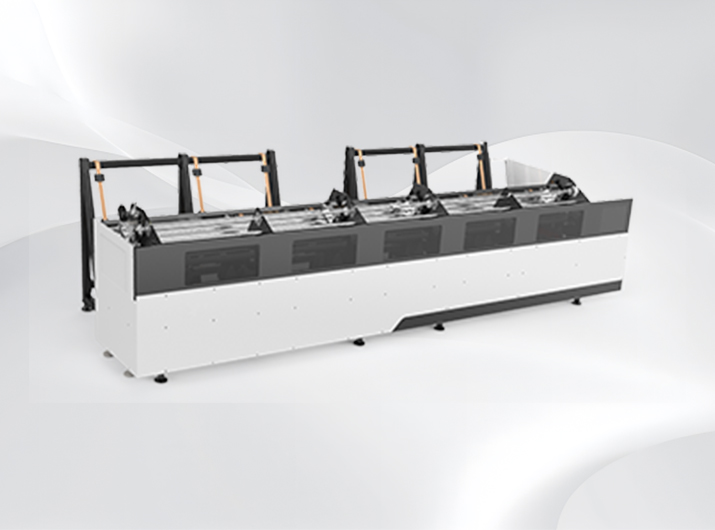

2. Semi-automatic Feeding System

Semi automatic feeding, efficient and time-saving, significant safety benefits, and labor cost savings.

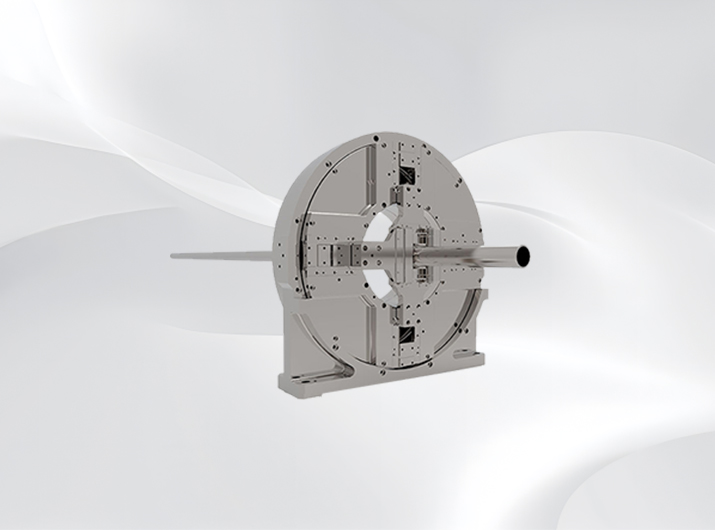

3. High Precision Rotary Shaft Chuck

10-120mm diameter chuck,max loading 100kg.

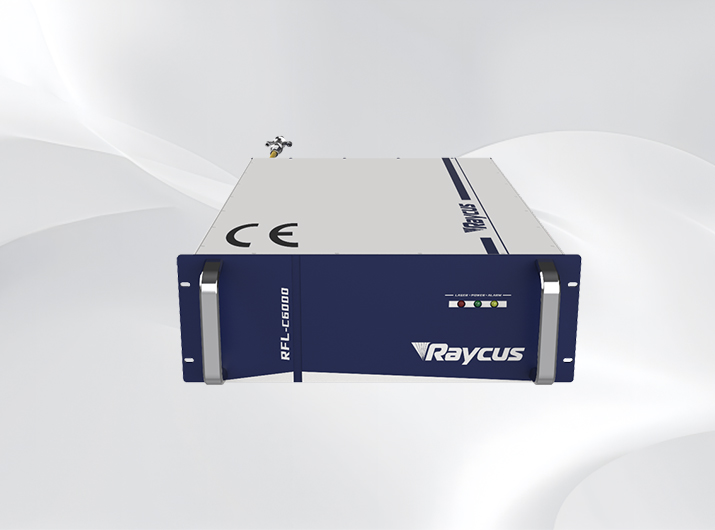

4. CE Version Raycus Laser Source

2 year global warranty, good beam quality, high energy density, wide modulation frequency, strong reliability, long life, and maintenance-free operation.

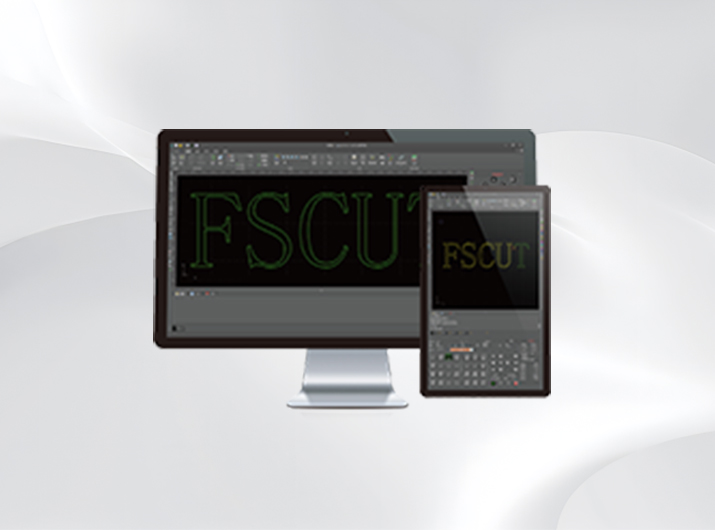

5. Professional Pipe&Tube Cutting Controller

FSCUT3000DE-M 2-Chuck cutting controller for regular tube, cuts square, round, obround, ellipse tubes and L beam, U beam precisely and efficiently.
